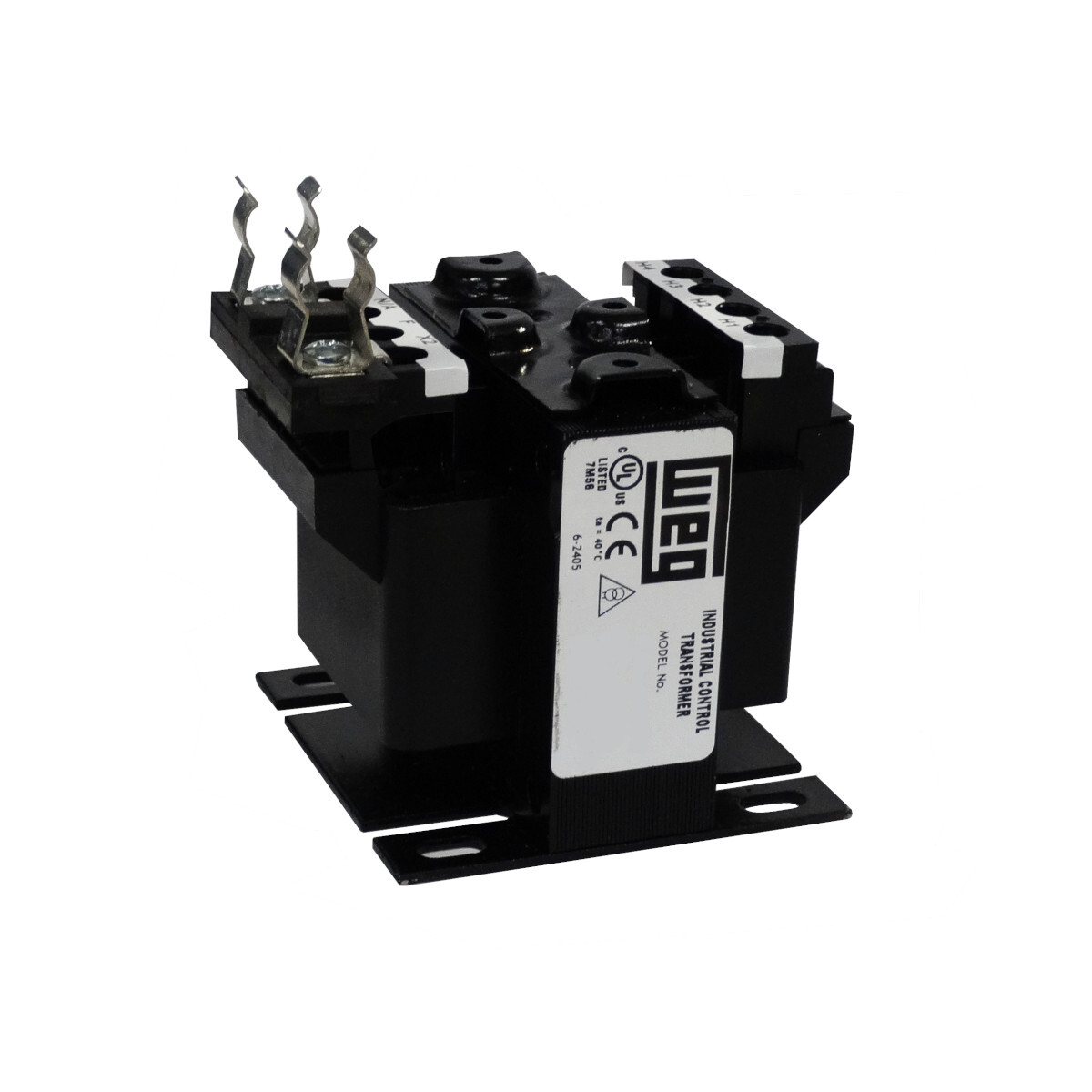

WEG CATALOG# CPTW750-ERC-F0 CONTROL TRANSFORMER, 750VA, 50/60Hz, PRIMARY VOLTAGE - 550/575/600 V, SECONDARY VOLTAGE - 110/115/120 V
WEG CATALOG# CPTW750-ERC-F0 CONTROL TRANSFORMER, 750VA, 50/60Hz, PRIMARY VOLTAGE - 550/575/600 V, SECONDARY VOLTAGE - 110/115/120 V - Image 2

WEG CATALOG# CPTW750-ERC-F0 CONTROL TRANSFORMER, 750VA, 50/60Hz, PRIMARY VOLTAGE – 550/575/600 V, SECONDARY VOLTAGE – 110/115/120 V

STOCK IS SUBJECT TO CHANGE WITHOUT NOTICE. CONTACT US TO CONFIRM AVAILABILITY.

View List
SKU: CPTW750-ERC-F0 Categories: ,

Description

WEG CATALOG# CPTW750-ERC-F0 PRODUCT INFORMATION

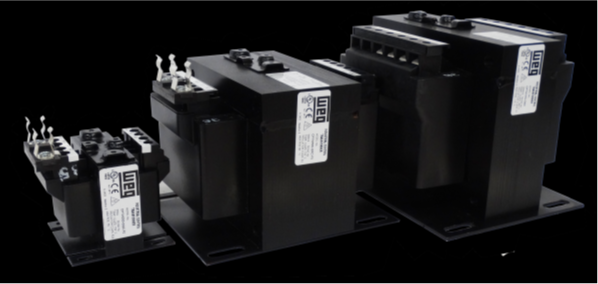

WEG CONTROL TRANSFORMER BROCHURE

Model CPTW750-ERC-F0N
Total Power (VA) 750.0
Primary Voltage 550/575/600 V
Secondary Voltage 110/115/120 V
Frequency 50/60 Hz
Factory installed accessory Secondary fuse clip
Temperature Class 130°C
Certification CE/CUL
Temperature Rise 80°C
Degree of protection IP20
Winding Material Copper
Terminal Cover Without

Additional information

Weight 32 lbs
Dimensions 14 × 14 × 14 in
